Description

The EJC M10 ZT is a cost-effective entry-level model in the Jungheinrich electric stacker truck range. It assists you in transporting loads weighing up 1000 kg and stacking pallets at heights of up to 3300 mm. The electric stacker truck is perfect for small and medium-sized companies who perform occasional transport and stacking activities. It has been designed specifically for in-house goods transport.

. Different lift heights available (3300mm, other mast heights available on request)
. Powerful and efficient thanks to three-phase AC drive motor
. Intelligent automatic shut-off when not used for 30 minutes
. Excellent agility thanks to compact dimensions
. Ergonomic tiller handle that can be operated with either hand
. Maintenance-free lead-gel battery and on-board charger

The Jungheinrich EJC M10 ZT electric stacker truck – 1000 kg capacity for light-duty internal goods transport The EJC M10 ZT was developed specifically for use in small and medium-sized businesses with occasional need for a goods transport solution. The 0.6 kW motor assists you in transporting pallets and goods weighing up to 1000 kg over short distances. The electric stacker truck is ideal for occasional order picking or stacking of pallets at heights of up to 3300 mm. The ergonomic tiller handle can be operated with either hand and is very user-friendly. You control all lifting and lowering functions via the multifunction tiller head, thus allowing you to devote your full attention to the task at hand.

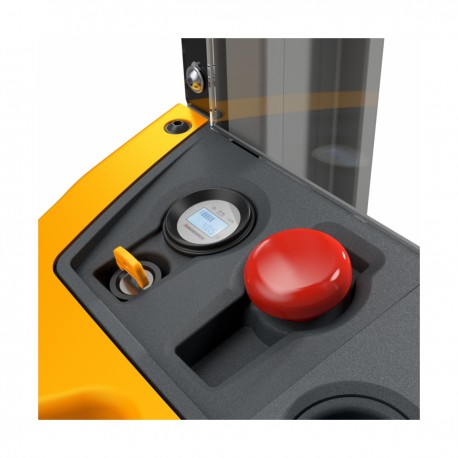

All important control instruments, such as the battery charge indicator, hour meter, emergency disconnect and key are positioned centrally in your direct field of view. The electric stacker truck offers a range of safety measures for complete peace of mind. The low ground clearance of just 30 mm reduces the risk of foot injuries. The full panelling of the truck housing provides additional protection.

Thanks to the low frame height and optimum view through the mast, even smaller operators have a clear view of the fork tips at all times. With its compact design and short headlength, the EJC M10 ZT is extremely agile and can be used safely in even the tightest of spaces. The pedestrian truck is equipped with a two-stage telescopic mast. The ZT or Simplex mast is a two-stage model with direct extension of the mast. A 200 mm stroke of the fork carriage results in a 100 mm movement of the moving mast. A particularly beneficial feature of the EJC M10 is that it is quite small in size relative to its high lift height, a fact that makes it ideal for low ceiling heights. The electric stacker truck is particularly energy efficient. The use of powerful, maintenance-free three-phase AC technology allows you to reduce your operating costs and maximise the speed and cost efficiency of your stock turnover.

Efficient energy management is further supported by the regenerative brake with energy recovery when reducing the travel speed. The truck switches off automatically when not used for 30 minutes. This intelligent automatic shut-off helps to protect the battery. The maintenance-free lead-gel battery and on-board charger ensure maximum flexibility. The battery can be easily charged at any 230 V socket.

Enjoy a cost-effective entry into the Jungheinrich electric stacker truck range by purchasing the EJC M10 ZT with 1000 kg capacity from our shop in your desired lift height.

Drive
electric
Aisle width
2103 mm
Control panel
two-handed
Operator type
Pedestrian
Ground clearance
30 mm
Chassis surface
powder-coated
Tiller height
1190 mm
Tiller surface
powder-coated
Tiller RAL colour
RAL 7016 anthracite grey
Fork length
1150 mm
Fork roller diameter
80 mm
Fork roller material
Polyurethane (PU)
Fork roller equipment
Tandem
Fork height
55 mm
Overall width
800 mm
Overall length
1685 mm
Load centre
600 mm
Turning radius
1270 mm
Capacity
1000 kg
Fork roller width
70 mm
Lift
3300 mm
Lift range
85 - 3300 mm
Fork support width
540 mm
Model
Jungheinrich EJC M10 ZT
Lowering speed with/without load
0,15 / 0,12 m/s
Colour chassis
Jungheinrich yellow
Lift motor output
2.2 kW
Travel speed, laden/unladen
4,5 / 5 km/h
Battery type
Lead gel battery
Battery voltage
24 V/per unit
Battery capacity
105 Ah/per unit
Net weight incl. battery
634 kg
Noise level as per EN 12053 (operator's ear)
66 dB(A)
Drive wheel diameter front
230 mm
Drive wheel material
Thermoplastic elastomers based on urethane (TPU)
Gradeability
0.05
Additional wheel width
50 mm
Drive wheel width front
65 mm
Lift speed with/without load
0,12 / 0,22 m/s
Charger
integrated
Spare wheel diameter
100 mm
Max. gradeability laden/unladen
4 / 10 %
Battery weight
52 kg
Brake
electric
Drive motor power
0.6 kW
Free lift
100 mm
Mast
Duplex telescopic mast (ZT)
Mast height
2280 - 3514 mm
Automatic shut-off without insert
30 min
Creep speed button
yes
Drive control type
AC speed control
  • % Sale
  • % Sale
  • Availability: 2

    Jungheinrich EJC M10 ZT 3.3m Electric Pallet Stacker

    With a capacity of 1000 kg for occasional order picking and pallet stacking

    • 3300mm Lift Height
    • 3-phase AC drive motor
    • Maintenance-free battery
    • 2 stage telescopic mast
    • 1000kg capacity

    €6,499.00
    Tax excluded
    51489684
    Status: In stock

    Delivery: 3-4 day delivery
